场景适配
W天幕升级款面向精品营地、户外餐厅、茶咖空间、屋顶露台等户外运营场景，适合在项目早期用于判断空间气质、功能落点与客群体验。
W RIDGE CANOPY is positioned for Boutique Camp, Outdoor Restaurant, Tea and Cafe Space, Rooftop Terrace and related outdoor hospitality programs.
Product Archive / 产品档案
W天幕升级款
W RIDGE CANOPY
Ridge-frame Outdoor Dining Canopy
W天幕升级款以高挑双坡屋面与外露A字结构为主要视觉语言，将传统露营天幕转化为适合餐饮、茶咖、露台休闲与商业接待的半开放户外空间。
W RIDGE CANOPY upgrades the camping tarp into a compact ridge-frame canopy for dining, tea, terrace lounging and commercial reception settings.
尺寸
整体尺寸 3.6 x 5.2 x 3.6m；占地面积约18.72㎡
场景
精品营地 / 户外餐厅 / 茶咖空间 / 屋顶露台 / 景区休息区 / 商业外摆 / 度假酒店 / 活动接待
状态
产品族谱索引 / 可组合布置
Archive Note / 档案说明
W天幕升级款以高挑双坡屋面与外露A字结构为主要视觉语言，将传统露营天幕转化为适合餐饮、茶咖、露台休闲与商业接待的半开放户外空间。
W RIDGE CANOPY upgrades the camping tarp into a compact ridge-frame canopy for dining, tea, terrace lounging and commercial reception settings.
类型 Type
Canopy System / Ridge Dining Canopy / Outdoor Commercial Shade
场景 Scenario
精品营地 / 户外餐厅 / 茶咖空间 / 屋顶露台 / 景区休息区 / 商业外摆 / 度假酒店 / 活动接待
Boutique Camp / Outdoor Restaurant / Tea and Cafe Space / Rooftop Terrace / Scenic Rest Area / Commercial Terrace / Resort Hotel / Event Reception
尺寸 Dimensions
整体尺寸 3.6 x 5.2 x 3.6m；占地面积约18.72㎡
Overall size 3.6 x 5.2 x 3.6m; footprint approx. 18.72 sqm
特点 Features
高位人字屋脊 / 米白篷布 / 黑色结构件 / 防腐木主框架 / WP8000防水 / 多套连续布置
High Ridge Profile / Ivory Fabric / Black Structural Members / Laminated Anti-corrosion Timber Frame / WP8000 Waterproof / Repeatable Layout
状态 Status
产品族谱索引 / 可组合布置
Product Index / Repeatable Configuration
Highlights / 亮点
设计与落地要点
尺度参数
产品规格以整体尺寸 3.6 x 5.2 x 3.6m；占地面积约18.72㎡为基础，可为场地平面、平台边界、结构深化和运营容量提供初步参照。
The reference dimensions are Overall size 3.6 x 5.2 x 3.6m; footprint approx. 18.72 sqm, supporting early checks for layout, platform edge and operational capacity.
结构与视觉特征
高位人字屋脊、米白篷布、黑色结构件、防腐木主框架、WP8000防水构成了W天幕升级款的主要识别点，后续可结合材料、风荷载、基础和现场动线继续深化。
High Ridge Profile, Ivory Fabric, Black Structural Members, Laminated Anti-corrosion Timber Frame, WP8000 Waterproof define the main identity of W RIDGE CANOPY for further material and engineering development.
深化边界
产品族谱索引 / 可组合布置。本页展示的是产品视觉与方案资料，实际生产、安装和运营需结合项目条件进行专项深化。
Product Index / Repeatable Configuration. Final production and installation require project-specific development.
W天幕升级款 / W RIDGE CANOPY / Ridge-frame Outdoor Dining Canopy / Canopy System / Ridge Dining Canopy / Outdoor Commercial Shade / 精品营地 / 户外餐厅 / 茶咖空间 / 屋顶露台 / 景区休息区 / 商业外摆 / 度假酒店 / 活动接待 / 整体尺寸 3.6 x 5.2 x 3.6m；占地面积约18.72㎡
W RIDGE CANOPY / Ridge-frame Outdoor Dining Canopy / Canopy System / Ridge Dining Canopy / Outdoor Commercial Shade / Boutique Camp / Outdoor Restaurant / Tea and Cafe Space / Rooftop Terrace / Scenic Rest Area / Commercial Terrace / Resort Hotel / Event Reception / Overall size 3.6 x 5.2 x 3.6m; footprint approx. 18.72 sqm

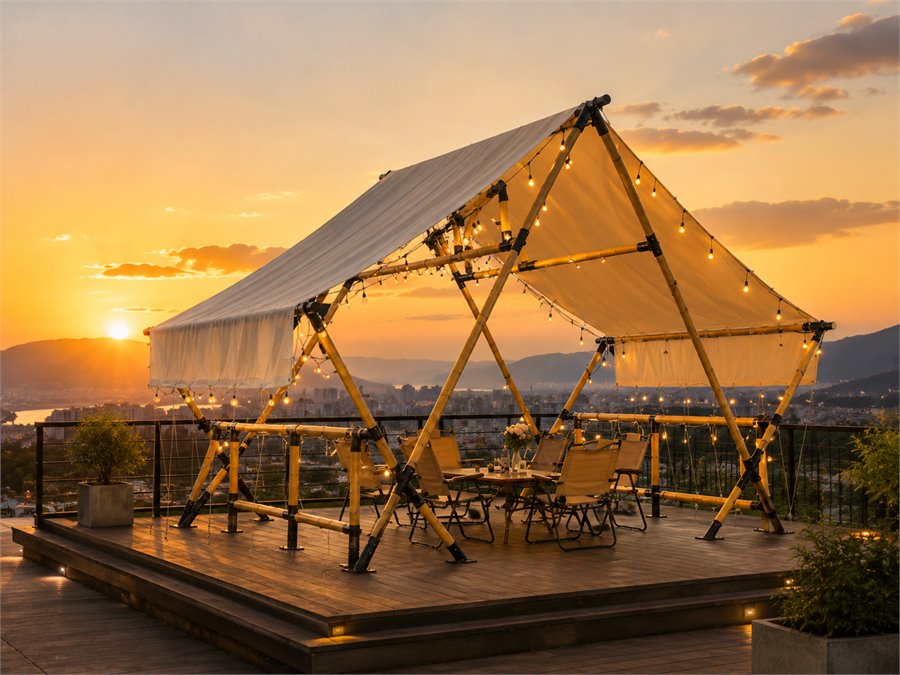

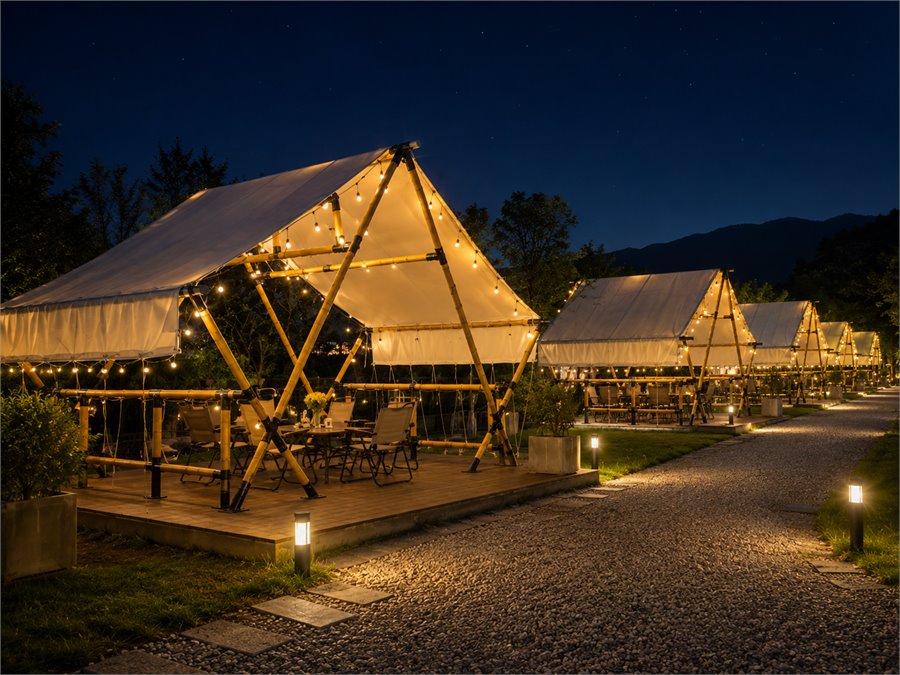

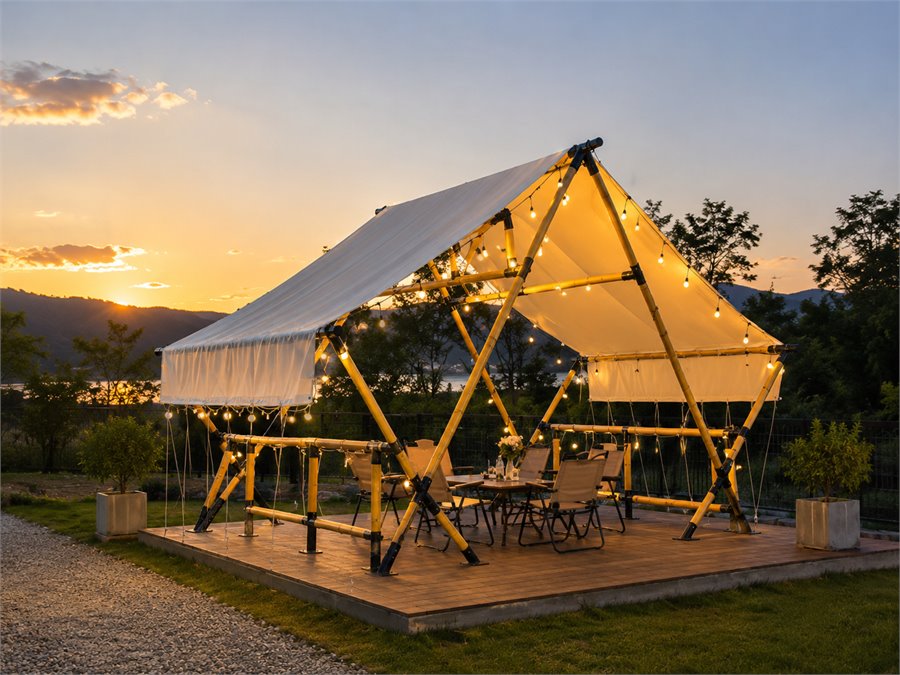

图像基于 KELLEN 原创产品设计资料制作，为产品概念视觉与应用场景模拟；实际生产与工程落地需结合项目条件深化。
Product visuals are based on KELLEN original design and development materials; final production and site delivery require project-specific development.
